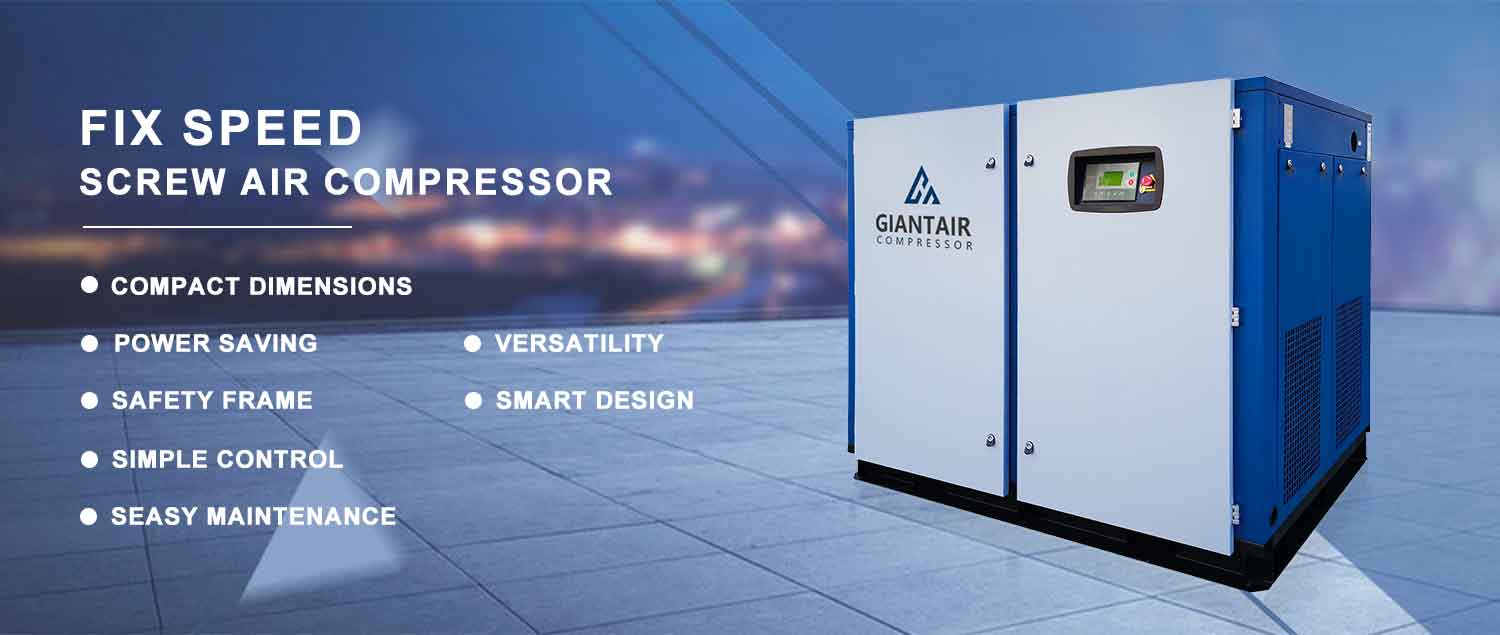

High Efficiency Direct Drive Air Compressor 5.5-350HP 8BAR 10BAR Air Cooling 220v/380v/415v Industrial Air-compressor

Model: GTA Series;

Brand: GIANTAIR

Rated Power: 7.5~560KW

Air Capacity: 1~100m³/min

Working Pressure: 7~13Bar

Send email to us

Product Detail

Product Tags

PRODUCT FEATURES

1.Excellent performance, true first class energy consumption.
2.Suitable forvariety hard environment conditions.Thecomplete unit is designed to operate at ambient tem-peratures up to 46°C/115°F.
3,Built for 100% continuous duty cycle.24 hours continuoustrouble- free operation, highly automated intelligent PLC.
4.Double filtration system, remove impurities and particlesin the suction air,longer life ofair end and lubricating oil.

Advantages To Our Customers

Small Footprint

Space-saving technology that also allows installation in confined spaces; Good accessibility for all service and maintenance work.

Lower Maintenance Costs

No need to exchange the belt and therefore lower maintenance costs; Longer life time of the air end due to lower radial forces on the bearings.

High Reliability

• No risk due to failure of belts

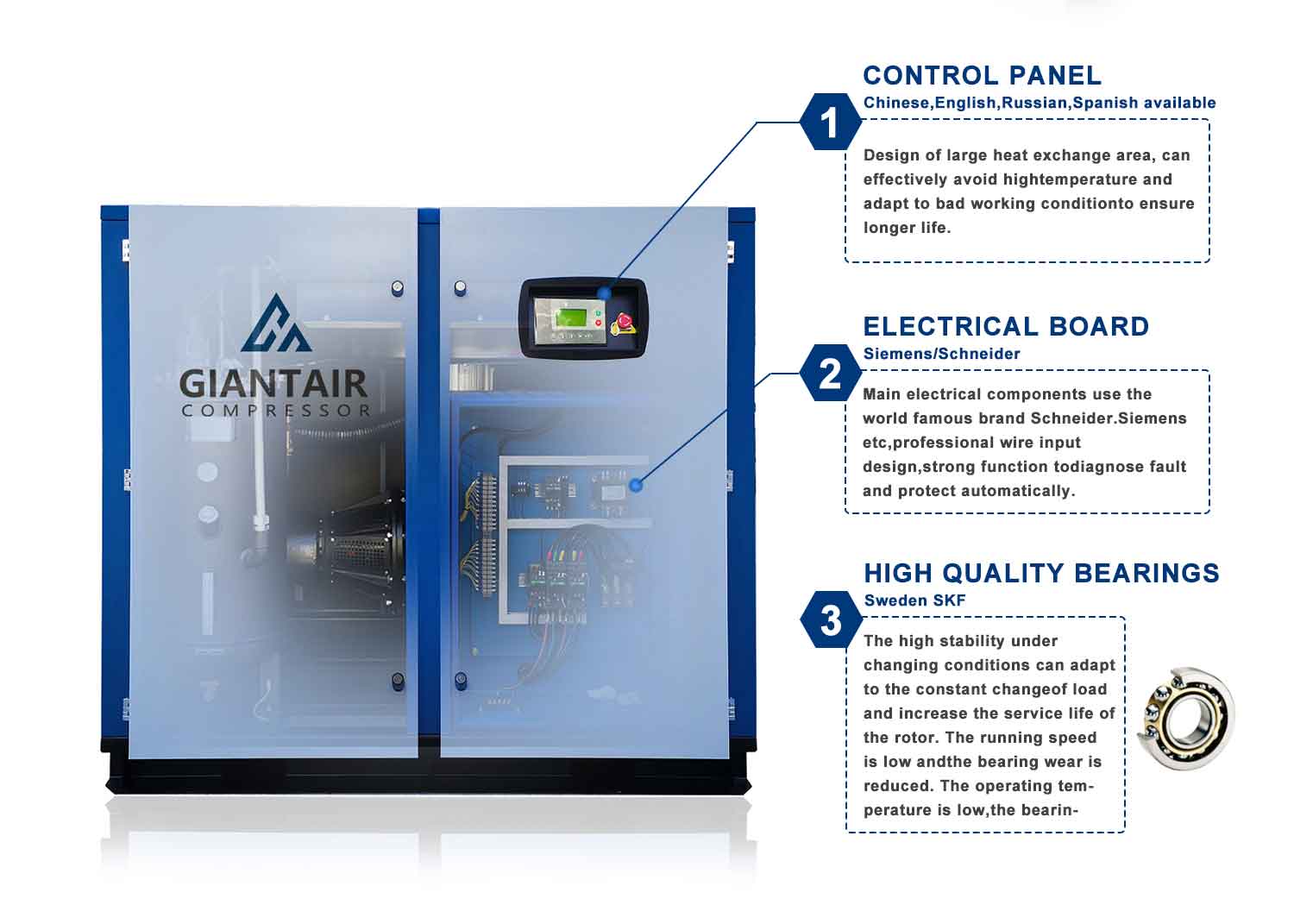

• Controller easy to handle, showing all necessary and important parameters on a clear display

High energy transmission between motor and air end:
• An energy efficient compressor lowers your electricity bill.

Good accessibility of compressor: Clear and structured design of compressor guarantees easy access from all directions .

Considerable reduction of noise emissions due to due to direct drive: Considerable lower investment costs due to no need of additional protection against noise

Motors operate with low speed and big sized air ends resulting in long maintenance intervals and reduction of maintenance cost

MODEL	MAXIMUM WORKING PRESSURE		FREE AIR DELIVERY* OF UNIT AT WORKING PRESSURE			MOTOR		NOISE LEVEL**	AIR OUTLET DISCHARGE SIZE	WEIGHT	DIMENSIONS
MODEL	Bar	PSI	l/s	m3/min	CFM	kW	HP	dBA		KG	L X W X H (mm)
GAT-10	7	101.5965167	20	1.20	43	7.5	10	65±2	G3/4	190	900 x 650 x 870
GAT-10	8	116.1103048	18	1.10	39	7.5	10	65±2	G3/4	190	900 x 650 x 870
GAT-15	7	101.5965167	28	1.70	61	11	15	70±2	G1	320	1120 x 750 x 980
	8	116.1103048	27	1.60	57
	10	145.137881	22	1.30	46
	13	188.6792453	17	1.00	36
GAT-20	7	101.5965167	40	2.40	86	15	20	70±2	G1	340	1120 x 750 x 980
	8	116.1103048	37	2.20	79
	10	145.137881	33	2.00	71
	13	188.6792453	27	1.60	57
GAT-25	7	101.5965167	52	3.10	111	18.5	25	73±2	G1	420	1300 x 920 x 1170
	8	116.1103048	48	2.90	104
	10	145.137881	45	2.70	96
	13	188.6792453	37	2.20	79
GAT-30	7	101.5965167	60	3.60	129	22	30	73±2	G1	450	1300 x 920 x 1170
	8	116.1103048	57	3.40	121
	10	145.137881	53	3.20	114
	13	188.6792453	45	2.70	96
GAT-40	7	101.5965167	87	5.20	186	30	40	73±2	G1 1/2	600	1460 x 1050 x 1250
	8	116.1103048	83	5.00	179
	10	145.137881	67	4.00	143
	13	188.6792453	52	3.10	111
GAT-50	7	101.5965167	107	6.40	229	37	50	73±2	G1 1/2	650	1460 x 1050 x 1250
	8	116.1103048	105	6.30	225
	10	145.137881	90	5.40	193
	13	188.6792453	78	4.70	168
GAT-60	7	101.5965167	122	7.30	261	45	60	75±2	G1 1/2	780	1500 x 1060 x 1620
	8	116.1103048	120	7.20	257
	10	145.137881	103	6.20	221
	13	188.6792453	95	5.70	204
GAT-75	7	101.5965167	158	9.50	339	55	75	75±2	G2	1050	1700 x 1200 x 1550
	8	116.1103048	157	9.40	336
	10	145.137881	137	8.20	293
	13	188.6792453	112	6.70	239
GAT-100	7	101.5965167	207	12.40	443	75	100	75±2	G2	1100	1700 x 1200 x 1550
	8	116.1103048	203	12.20	436
	10	145.137881	180	10.80	386
	13	188.6792453	152	9.10	325
GAT-125	7	101.5965167	257	15.40	550	90	125	75±2	G2	1500	2100 x 1300 x 1650
	8	116.1103048	250	15.00	536
	10	145.137881	222	13.30	475
	13	188.6792453	190	11.40	407
GAT-150	7	101.5965167	335	20.10	718	110	150	83±2	DN80	2650	2500 x 1650 x 1900
	8	116.1103048	332	19.90	711
	10	145.137881	272	16.30	582
	13	188.6792453	242	14.50	518
GAT-175	7	101.5965167	390	23.40	836	132	175	83±2	DN80	2800	2500 x 1650 x 1900
	8	116.1103048	383	23.00	821
	10	145.137881	328	19.70	704
	13	188.6792453	267	16.00	571
GAT-220	7	101.5965167	458	27.50	982	160	220	85±2	DN80	3950	3000 x 1900 x 1950
	8	116.1103048	450	27.00	964
	10	145.137881	375	22.50	804
	13	188.6792453	350	21.00	750
GAT-250	7	101.5965167	508	30.50	1089	185	250	85±2	DN80	4100	3000 x 1900 x 1950
	8	116.1103048	492	29.50	1054
	10	145.137881	450	27.00	964
	13	188.6792453	375	22.50	804
GAT-300	7	101.5965167	633	38.00	1357	220	300	88±2	DN100	5000	3600 x 2200 x 2200
	8	116.1103048	617	37.00	1321
	10	145.137881	550	33.00	1179
	13	188.6792453	475	28.50	1018
GAT-350	7	101.5965167	733	44.00	1571	250	350	88±2	DN100	5900	3600 x 2200 x 2200
	8	116.1103048	708	42.50	1518
	10	145.137881	625	37.50	1339
	13	188.6792453	525	31.50	1125
GAT-430	7	101.5965167	933	56.00	2000	315	430	93±2	DN125	6500	4000 x 2300 x 2300
	8	116.1103048	900	54.00	1929
	10	145.137881	817	49.00	1750
	13	188.6792453	717	43.00	1536
GAT-480	7	101.5965167	1100	66.00	2357	355	480	93±2	DN125	7000	4000 x 2300 x 2300
	8	116.1103048	1067	64.00	2286
	10	145.137881	933	56.00	2000
	13	188.6792453	783	47.00	1679
GAT-540	7	101.5965167	1233	74.00	2643	400	540	95±2	DN150	7500	4200 x 2200 x 2350
	8	116.1103048	1200	72.00	2571
	10	145.137881	1033	62.00	2214
	13	188.6792453	942	56.50	2018
GAT-600	7	101.5965167	1408	84.50	3018	450	600	95±2	DN150	8100	4200 x 2200 x 2350
	8	116.1103048	1367	82.00	2929
	10	145.137881	1167	70.00	2500
	13	188.6792453	1008	60.50	2161
GAT-670	7	101.5965167	1517	91.00	3250	500	670	100±2	DN200	8500	4650 x 2300 x 2350
	8	116.1103048	1467	88.00	3143
	10	145.137881	1350	81.00	2893
	13	188.6792453	1133	68.00	2429
GAT-750	7	101.5965167	1667	100.00	3571	560	750	100±2	DN200	9000	4650 x 2300 x 2350
	8	116.1103048	1600	96.00	3429
	10	145.137881	1417	85.00	3036
Specifications are subject to change without notice.
