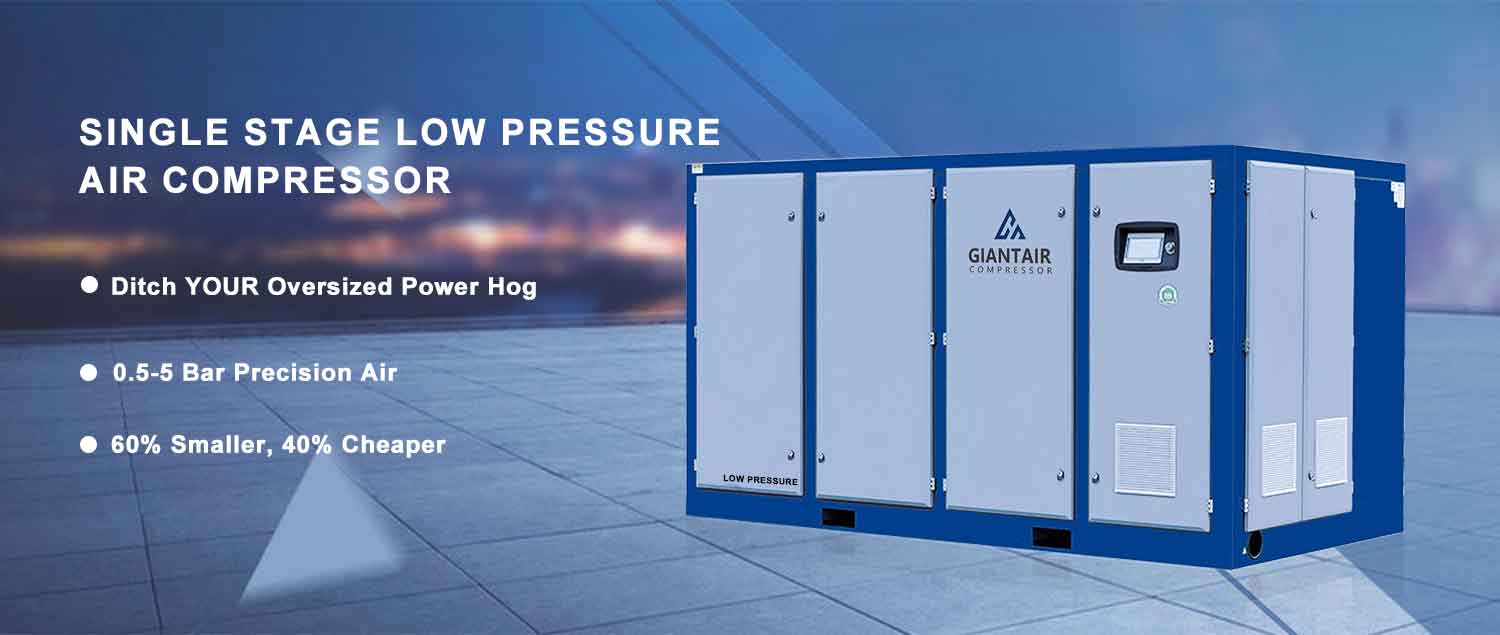

Single Stage Low Pressure Permanent Magnetic Variable Speed Screw Air Compressor (PM VSD)

Model：GD Series;

Brand: GIANTAIR

Rated Power: 37~160KW

Air Capacity: 8~60m³/min

Working Pressure: 2~5Bar

Send email to us

Product Detail

Product Tags

APPLICATION INDUSTRY

Product Image

MODEL	MAXIMUM WORKING PRESSURE		FREE AIR DELIVERY* OF UNIT AT WORKING PRESSURE			MOTOR		NOISE LEVEL**	AIR OUTLET DISCHARGE SIZE	WEIGHT	DIMENSIONS
MODEL	Bar	PSI	l/s	m3/min	CFM	kW	HP	dBA	AIR OUTLET DISCHARGE SIZE	KG	L X W X H (mm)
GD-50PM	3	44	197	11.80	421	37	50	70±2	DN80	1300	2100 x 1300 x 1650
	4	58	167	10.00	357				DN80	1300	2100 x 1300 x 1650
	5	73	133	8.00	286				G2	900	1700 x 1200 x 1550
GD-60PM	2	29	283	17.00	607	45	60	73±2	DN100	2500	2500 x 1650 x 1900
	3	44	225	13.50	482				DN80	1500	2100 x 1300 x 1650
	4	58	197	11.80	421				DN80	1500	2100 x 1300 x 1650
	5	73	167	10.00	357				G2	950	1700 x 1200 x 1550
GD-75PM	2	29	342	20.50	732	55	75	73±2	DN125	2900	2500 x 1650 x 1900
	3	44	283	17.00	607				DN100	2900	2500 x 1650 x 1900
	4	58	237	14.20	507				DN80	1600	2100 x 1300 x 1650
	5	73	222	13.30	475				G2	1550	2100 x 1300 x 1650
GD-100PM	2	29	450	27.00	964	75	100	73±2	DN125	3000	2500 x 1650 x 1900
	3	44	400	24.00	857				DN100	3000	2500 x 1650 x 1900
	4	58	342	20.50	732				DN100	2900	2500 x 1650 x 1900
	5	73	283	17.00	607				G2	1550	2100 x 1300 x 1650
GD-125PM	2	29	567	34.00	1214	90	125	75±2	DN125	3500	3000 x 1900 x 1950
	3	44	467	28.00	1000				DN100	3100	2500 x 1650 x 1900
	4	58	400	24.00	857				DN100	3000	2500 x 1650 x 1900
	5	73	333	20.00	714				DN80	2950	2500 x 1650 x 1900
GD-150PM	2	29	717	43.00	1536	110	150	75±2	DN200	5300	3600 x 2200 x 2200
	3	44	567	34.00	1214				DN125	4000	3000 x 1900 x 1950
	4	58	493	29.60	1057				DN100	3500	3000 x 1900 x 1950
	5	73	400	24.00	857				DN80	3200	3000 x 1900 x 1950
GD-175PM	2	29	867	52.00	1857	132	175	75±2	DN200	5800	3600 x 2200 x 2200
	3	44	700	42.00	1500				DN125	4300	3000 x 1900 x 1950
	4	58	550	33.00	1179				DN100	4100	3000 x 1900 x 1950
	5	73	508	30.50	1089				DN80	3700	3000 x 1900 x 1950
GD-220PM	2	29	1000	60.00	2143	160	220	80±2	DN200	6500	3600 x 2200 x 2200
	3	44	833	50.00	1786				DN200	6200	3600 x 2200 x 2200
	4	58	733	44.00	1571				DN100	4300	3000 x 1900 x 1950
	5	73	617	37.00	1321				DN100	4000	3000 x 1900 x 1950
Specifications are subject to change without notice.
