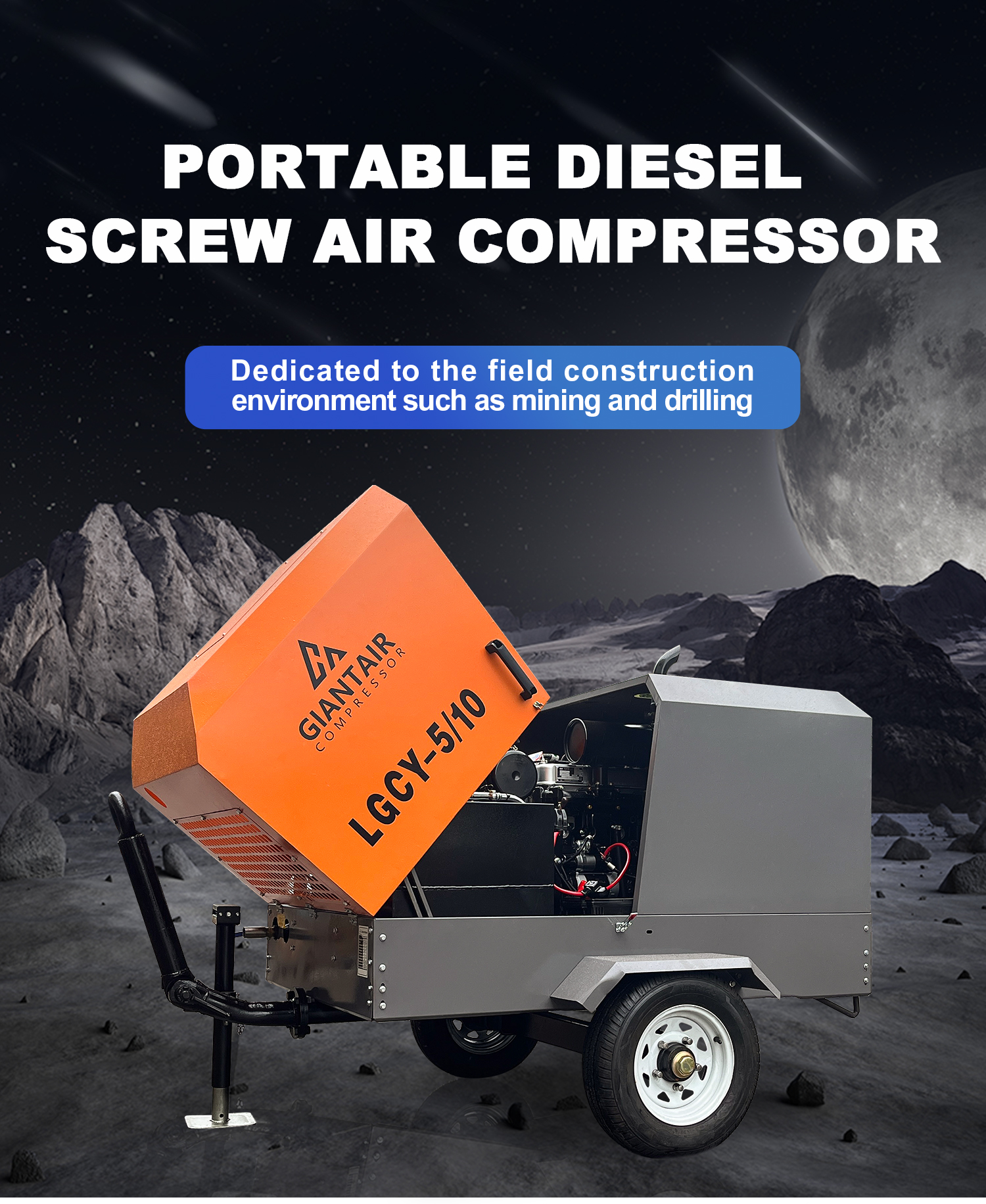

Diesel Screw Compressor | Survive YOUR Grid-Free Hellhole | 50% Fuel Save & -30°C Cold Start

Diesel Screw Compressor | Survive YOUR Grid-Free Hellhole | 50% Fuel Save & -30°C Cold Start

Diesel Screw Compressor | Survive YOUR Grid-Free Hellhole | 50% Fuel Save & -30°C Cold Start Featured Image
  • Diesel Screw Compressor | Survive YOUR Grid-Free Hellhole | 50% Fuel Save & -30°C Cold Start
  • Diesel Screw Compressor | Survive YOUR Grid-Free Hellhole | 50% Fuel Save & -30°C Cold Start
  • Diesel Screw Compressor | Survive YOUR Grid-Free Hellhole | 50% Fuel Save & -30°C Cold Start
  • Diesel Screw Compressor | Survive YOUR Grid-Free Hellhole | 50% Fuel Save & -30°C Cold Start
  • Diesel Screw Compressor | Survive YOUR Grid-Free Hellhole | 50% Fuel Save & -30°C Cold Start

Brand Name:GIANTAIR

Model Number:LGCY5-10

Power Source:Diesel

Motor:58-295kw

Pressure:8-25bar

Usage:Mining and drilling










Product Detail

Product Tags

柴移机_01

Stalled Air Is Sinking YOUR $1M Drilling Project.

When your electric compressor dies in your off-grid mine or your generator can’t start in -25°C, it paralyzes your DTH hammers, risks your shaft collapse, and burns your $18,000/day in idle costs.

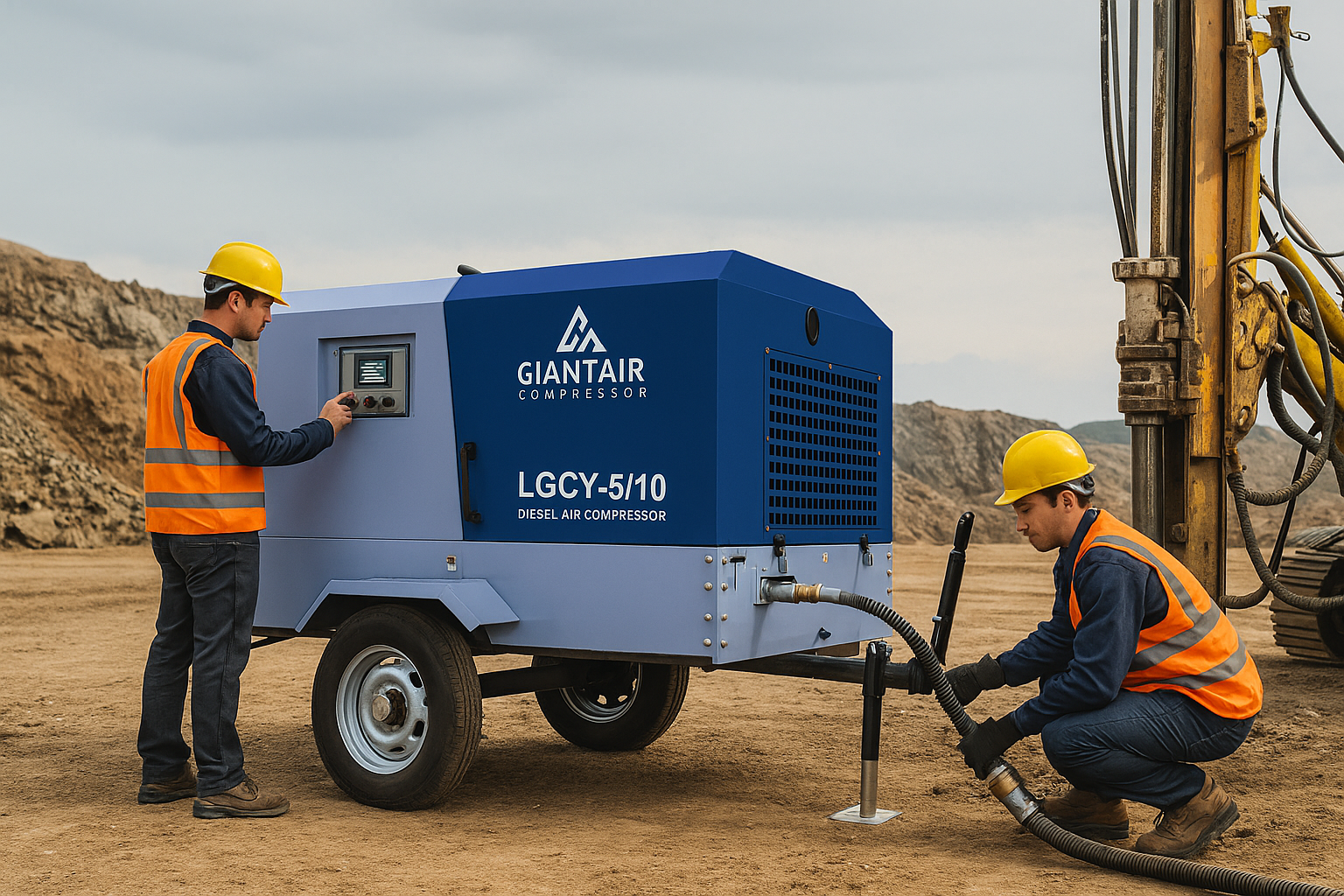

2025年7月21日 114621

OUR DIESEL SCREW DOMINATES YOUR FRONTLINE:

Slash YOUR Fuel Bills 50%

Variable displacement screws cut your diesel consumption to 12L/hour at partial load – saving your remote site $15,000/month vs clapped-out competitors guzzling 24L/hour.

Start in YOUR Siberian Deep Freeze

Arctic package fires up at -30°C without pre-heating – critical when your drill crew has 45 minutes to revive your frozen borehole before collapse.

Drink YOUR Dirty Diesel Without Choking

Self-cleaning injectors handle your sandy fuel or watered-down sludge. No more shutdowns because your shady fuel truck ruined your filters.

Outlast YOUR 24/7 Dust Apocalypse

Triple-sealed bearings laugh at your coal mine’s black blizzards. Oil-bath air filters survive your desert sandstorms that kill paper filters in 2 hours.

Relocate During YOUR Blast Break

Towable skid moves with your advancing tunnel. Quick-disconnect hoses swap in 8 minutes – faster than your crew’s lunch break.

Silence YOUR Regulatory Execution

Tier 4 Final exhaust meets your national park emission laws. 78 dB lets your night shift drill without triggering your noise violation fines.

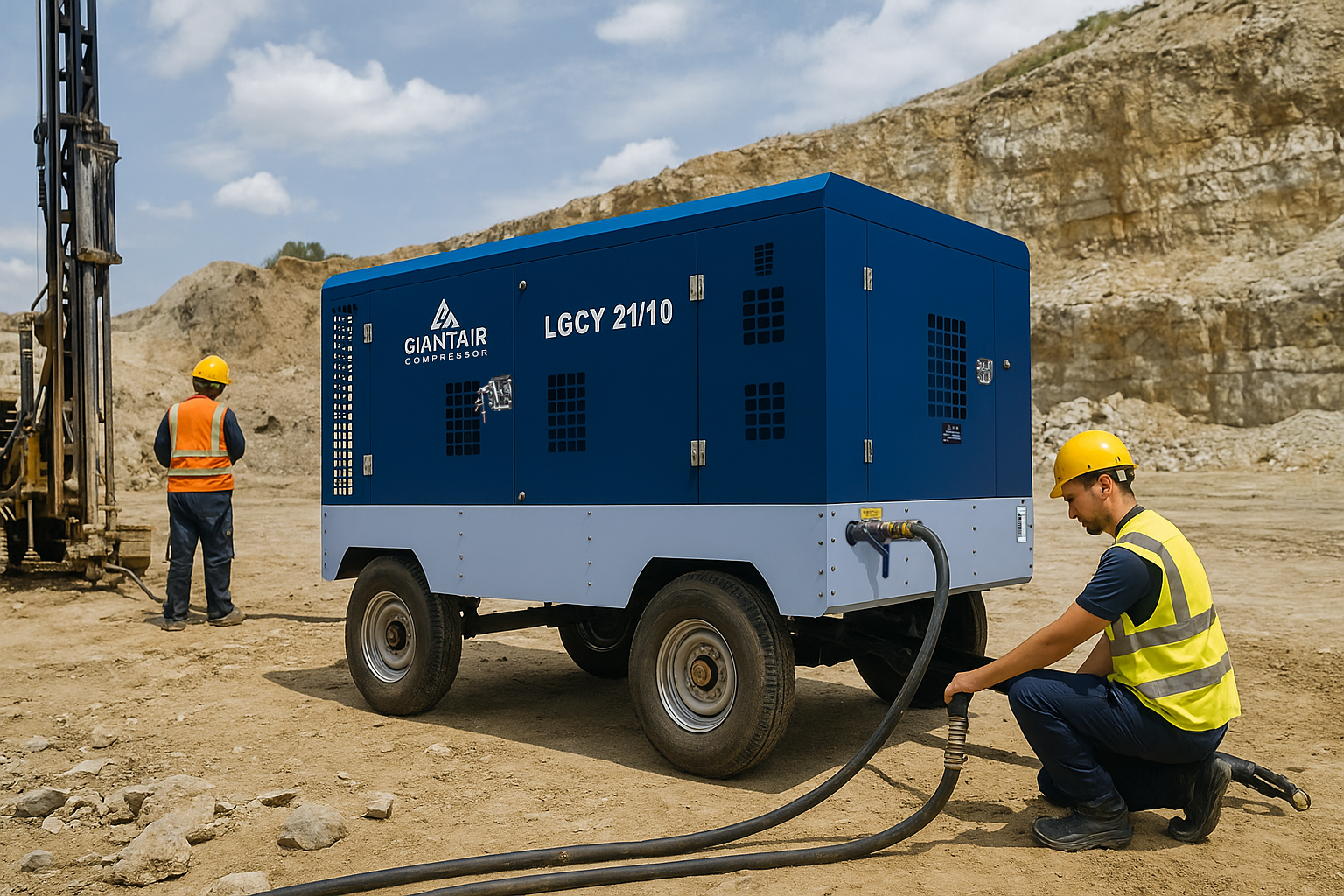

2025年7月22日 113112

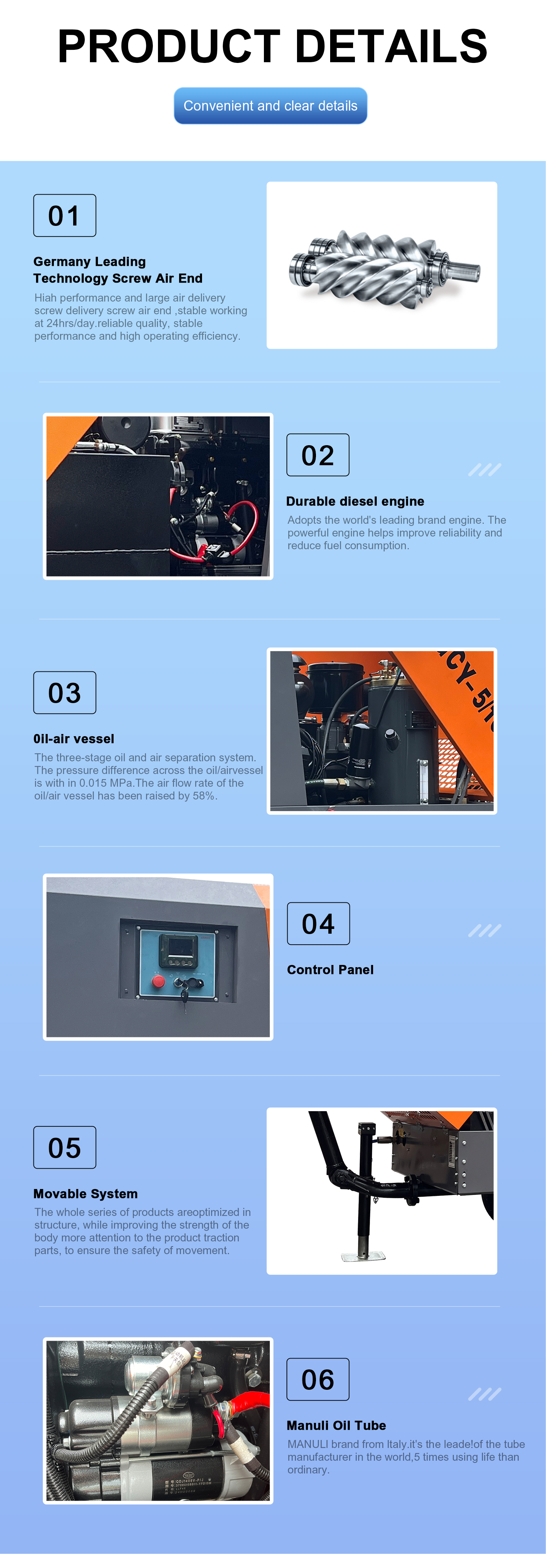

Product Details

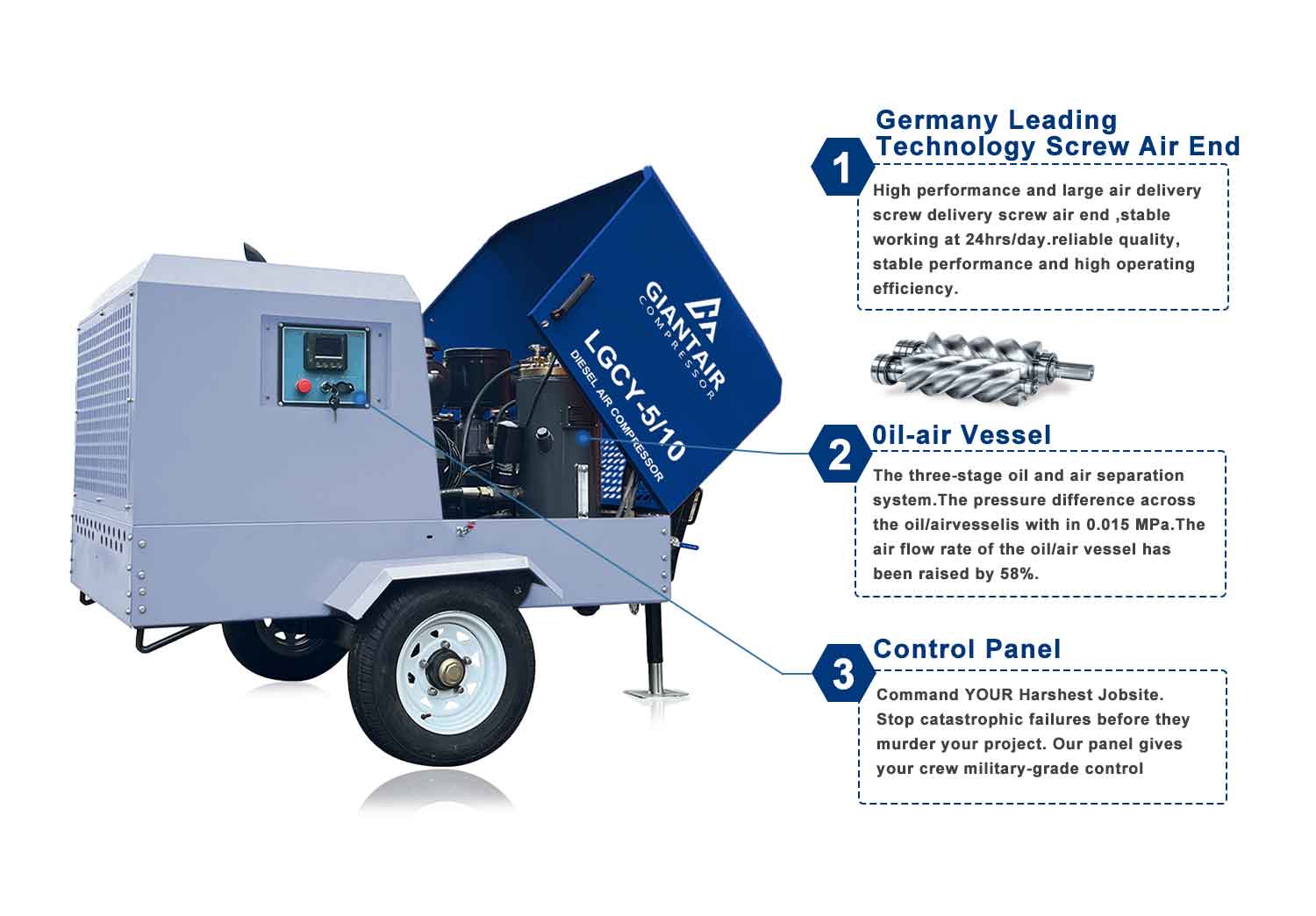

柴移机_02

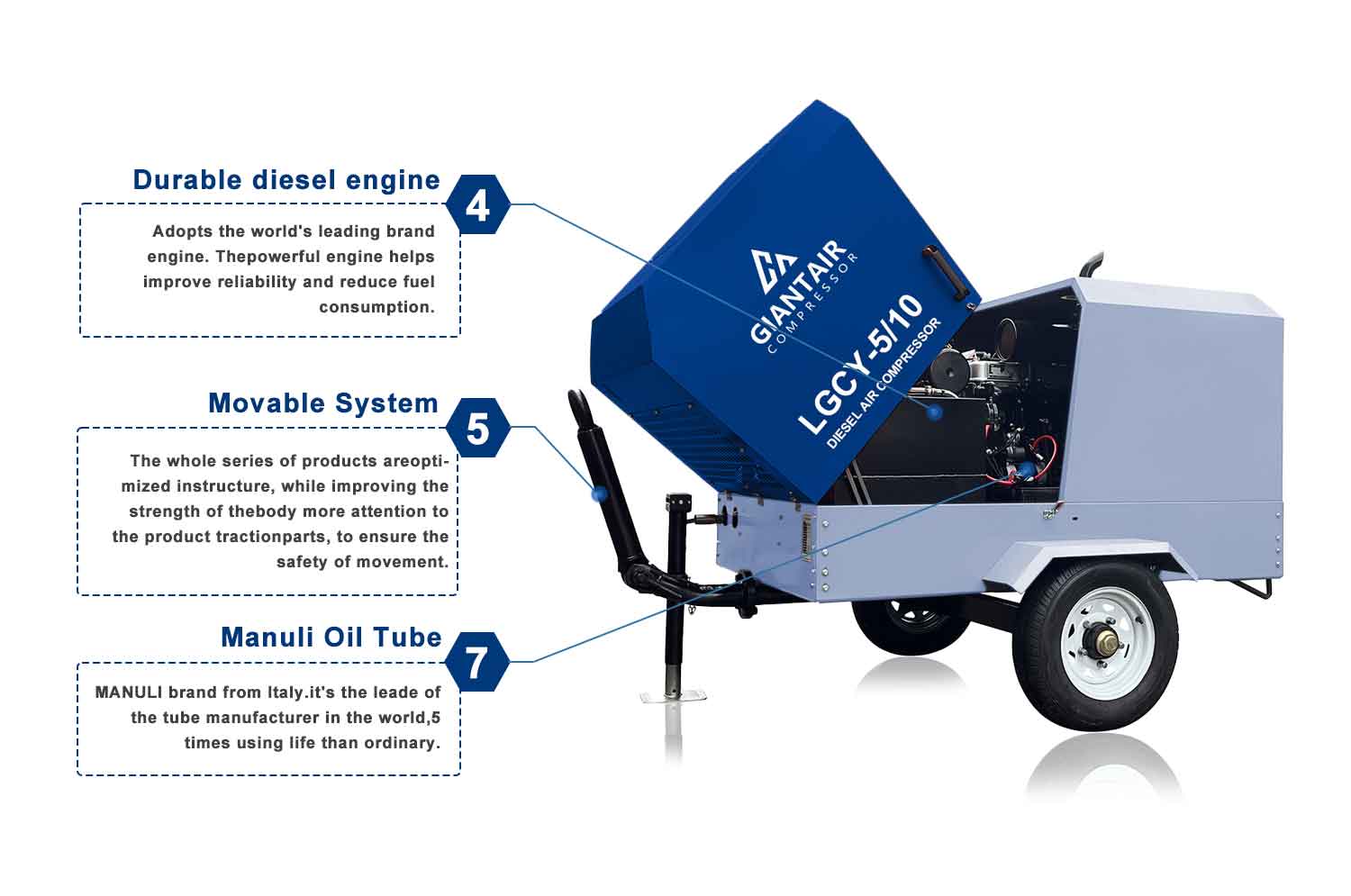

柴移机_03

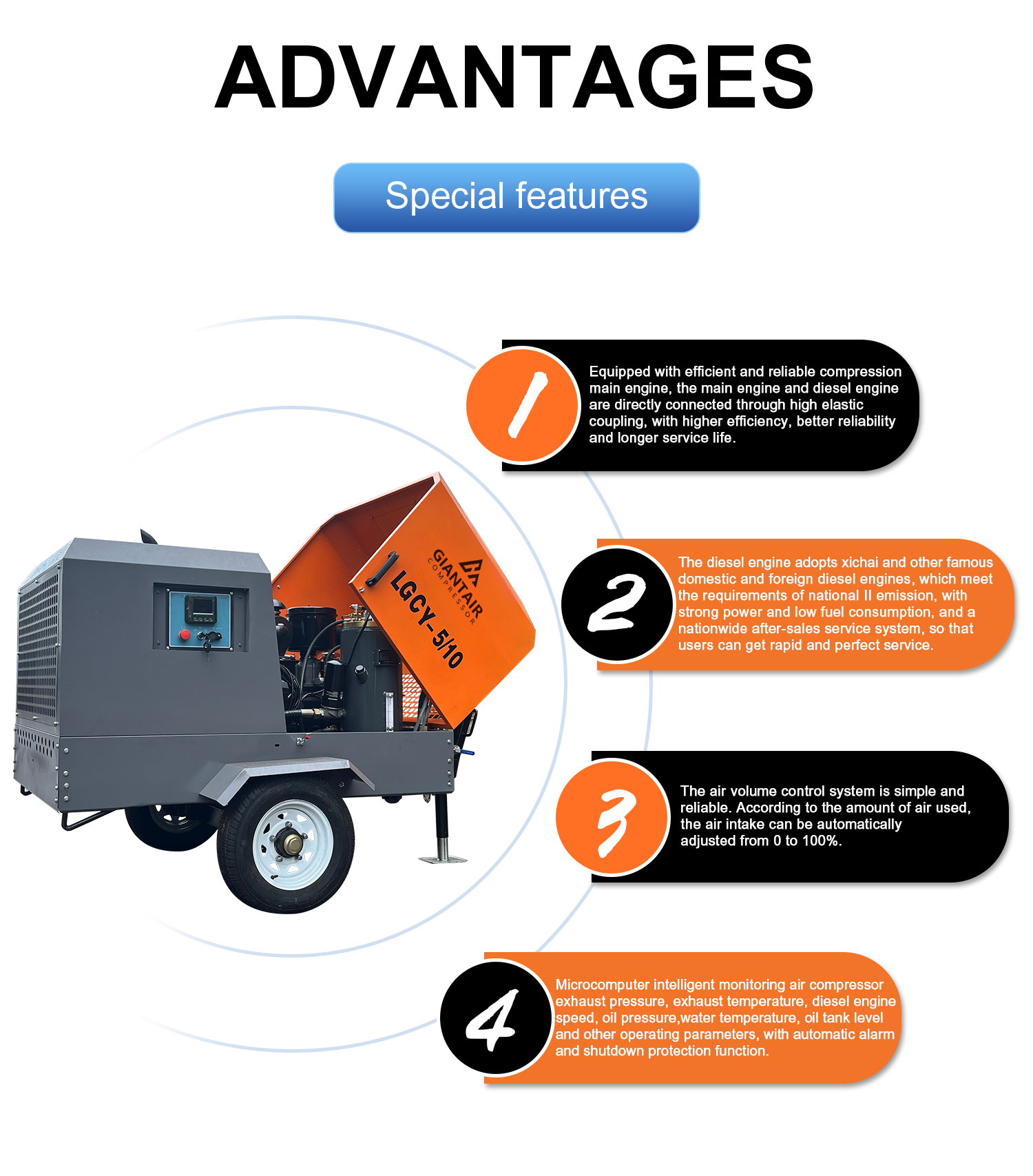

Advantages To Our Customers

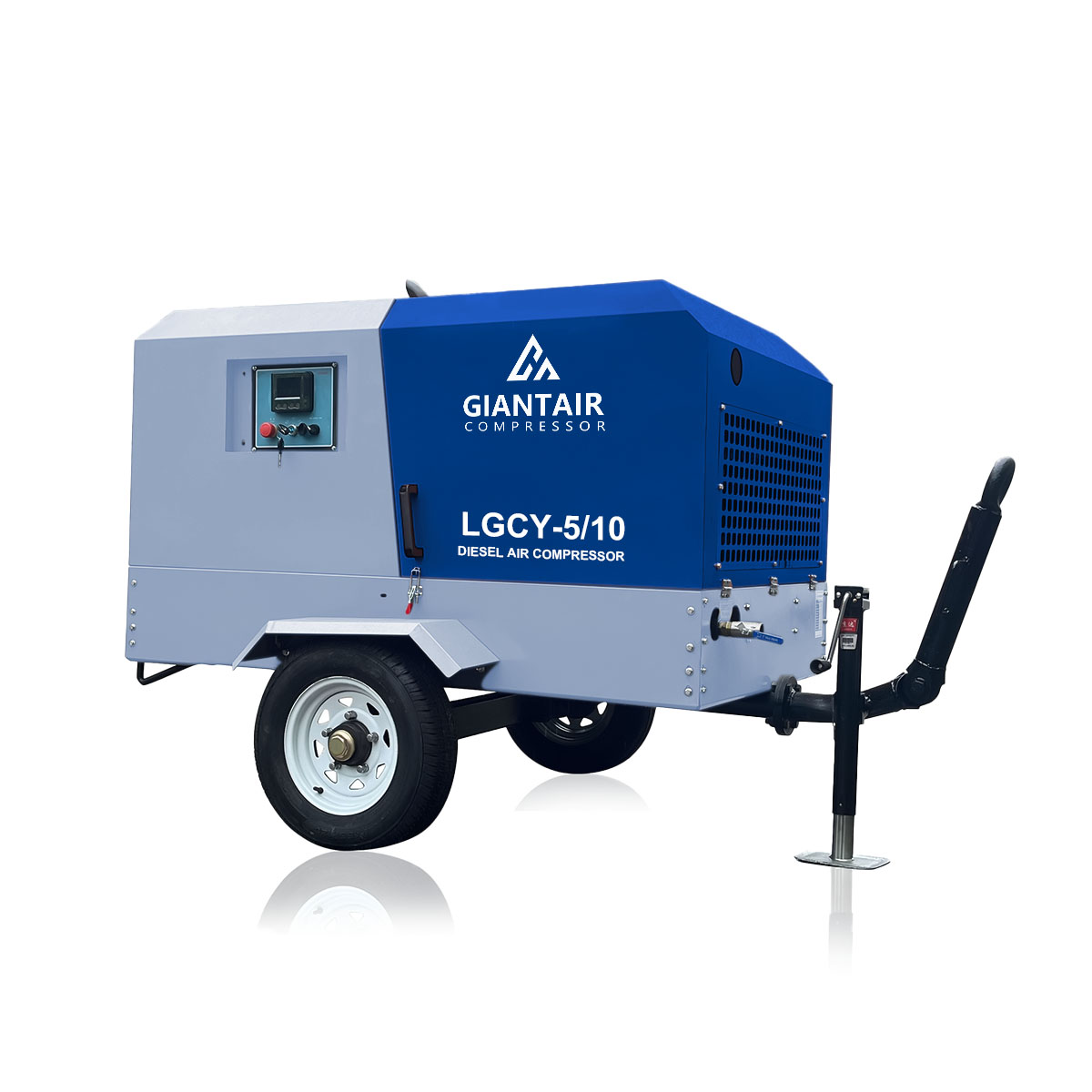

柴移机3

1.Equipped with efficient and reliable compressiormain engine, the main engine and diesel engineare directly connected through high elasticcoupling, with higher efficiency, better reliabilityand longer service life.

2.The diesel engine adopts xichai and other famousdomestic and foreign diesel engines, which meetthe requirements of national ll emission, withstrong power and low fuel consumption, and anationwide after-sales service system, so thatusers can get rapid and perfect service.

3.The air volume control system is simple andreliable,According to the amount of air usedthe air intake can be automaticallyadjusted from 0 to 100%.

4.Microcomputer intelligent monitoring air compressorexhaust pressure, exhaust temperature, diesel enginespeed, oil pressure,water temperature, oil tank leveland other operating parameters, with automatic alarmand shutdown protection function.

APPLICATION FIELD

柴移机_04

Specification sheet

MODEL MAXIMUM
WORKING
PRESSURE		 FREE AIR DELIVERY
OF UNIT AT WORKING
PRESSURE		 MOTOR AIR OUTLET
DISCHARGE
SIZE		 WEIGHT DIMENSIONS
Bar PSI I/s m³/min CFM KW HP KG L × W × H(mm)
LGCY-7/8 8 116 125 7.5 268 58 78 G3/4-G11/2 1000 2300×1800×1800
LGCY-13/8 8 116 217 13 464 110 150 G11/2-G2 2480 3350×1700×2050
LGCY-10/13 13 189 167 10 357
LGCY-17/8 8 116 284 17 607 140 188 G11/2-G2 2600 3350×1700×2050
LGCY-13/13 13 189 217 13 464
LGCY-15/13 13 189 251 15 536
LGCY-22/8 8 116 367 22 785 162 217 G11/2-G2 3800 3650×1800×2150
LGCY-17/13 13 189 284 17 607
LGCY-15/17 17 247 251 15 536
LGCY-18/17 17 247 301 18 643 191 256 G11/2-G2 4000 3650×1800×2150
LGCY-22/21 20 290 334 20 714 4500
LGCY-24/22 22 319 401 24 857 228 306
LGCY-29/24 24 348 484 29 1035 295 395 G11/2-G2 4800 4000×2050×2600
LGCY-30/10 10 145 501 30 1071
LGCY-31/25 25 363 518 31 1107 295 395 G11/2-G2 5000 4000×2050×2600
