Oil Filter | Extend YOUR Oil Life 50% | 10μm Absolute Filtration | Metal Particle Killer

Dirty Oil Grinds YOUR Compressor to Death.
Metal shavings and carbon sludge in your oil accelerate wear on your bearings and rotors – a $20,000 repair risk.

Send email to us

Product Detail

Product Tags

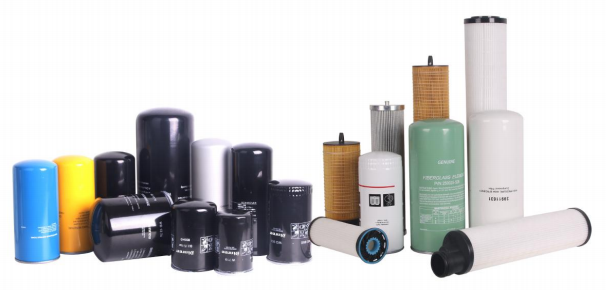

Product Image

Function

The function of oil filter is to remove solid particles, impurities and oil inferior substances in oil, makethe oil that enters the main engine is very clean to protect it safe operation.

High-Class Material

The Material of oil filter is choose HV company's ultra fine glass fiber composite filter materia or Korean AhIstrom company's pure wood pulp filter paper，which with high temperature resistance,corrosion resistance, more stable performance, high through rate, better filtering effect , the servicelife of oil filter is improved.

OUR FILTER IS YOUR LUBRICATION SURGEON:

Capture 99% of YOUR Metal Enemies

Depth-loading cellulose traps particles down to 10μm – protecting your rotor clearance like armor.

Double YOUR Oil Service Intervals

Clean oil reduces acid buildup, letting your oil last 4,000 hours (vs. 2,000 hours standard).

Install Blindfolded in YOUR Dark Plant

Spin-on canister with gripper surface swaps in 3 minutes – even with your greasy gloves.

Bleed-Free for YOUR Safety

Anti-drain valve prevents hot oil spills on your skin. ASME stamp handles your 15 Bar spikes.

Product Details

Suitable for the compressors

Ingersoll Rand, Atlas, Fusheng, Compair, LlUTECH,HITACH, KOBELCO, GAIRS, KAESER, KAISHAN, Red.

Performance parameters

Filtration accuracy: Within 10 microns, Filtration efficiency 98%, service life up to 2000 hours.

Why Choose GiantAir Oil Filter???

> STRICTLY QUALITY INSPECTION

Incoming material inspection,process inspection precision inspection, finished product inspection factory sampling inspection, appearance inspection. Each product needs to go through multiple processes.

> IMPORTED QUALITY PREMIUM PRICE
The core material is imported filter material the service life of the filter element is 100% consistent with the imported brand and the filtration accuracy is zero error.
> ENERGY SAVING AND ENVIRONMENTAL FRIENDLY
Lower residual oil rate and less pressure drop energy saving high efficiency and Environmental friendly.

> CUSTOMIZATION
GiantAir can be customized according to your special requirements in product performance or in terms of residual oil rate and differential pressure.

> GOOD SERVICE
Complete product inventory,fast delivery speed high-quality after-sales service.

THE HARM OF OIL FILTER OVERUSE

◆Insufficient oil return amount after plugging causes the exhaust temperature to be too high shortening the service life of oil and oil filter.
◆A lack of oil return amount after plugging will not lubricate the main engine leading to a serious shortening of the main engine life.
◆When the filter element is damaged unfiltered oil containing alarge amount of metal particles enters the main engine will causes it to be damaged.

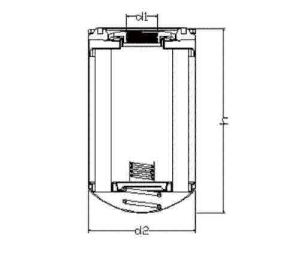

Specification sheet

Product Model	Corresponding part number	Rated flow (l/min)	外径d1 （mm）	内径d2 （mm）	高度h （mm）
33719/5	WD719/5	20	3-4'16	76	126
33940	WD940	40	3-4"16	93	140
33950	WD950	40	1"-12	93	175
33962	WD962	70	1"-12	93	212
3311102	WD11102	100	1.1/8"-16	108	260
331374	WD1374	95	1.1/2"-12	136	175
3313145	WD13145	100	1.1/2"-12	136	302
