Air Filter | Protect YOUR Air Compressor: 99.8% Efficiency Filter | Extend Equipment Life 30%

Every Particle Threatens YOUR Compressor.
When dust, pollen, or metal debris enters your air intake, it accelerates wear on your pistons, cylinders, and valves – leading to costly downtime.

Send email to us

Product Detail

Product Tags

Product Image

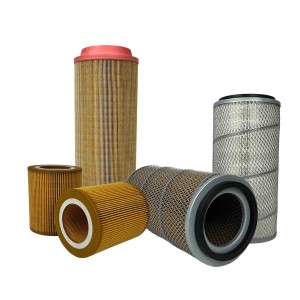

Air Filter

Suitable for the compressors:
Ingersoll Rand, Atlas, Fusheng, sullair, LIUTECHD Compair, HITACH, KOBELCO, BOGE, Dengfu, KAESER, KAISHAN, Red rings, DesLand, UNITED OSD, Schneider Sunshine, Rotorcomp, kangkeer, Wen-jian, Jaguar, Xinda, Quincy, SCR, Feihe, Langchao, GAIRS, Linghein, GANEY Hanbell etc.
Performance parameters:
Filtration accuracy:10um-15um Filtration efficiency 99.5%, service life up to 2000 hours.

OUR FILTER PUTS YOUR OPERATION FIRST:

Defend YOUR Investment

Blocks 99.8% of contaminants (down to 3μm) from attacking your compressor core, extending your equipment lifespan by 30%.

Slash YOUR Operating Costs

Clean airflow ensures your compressor burns 10% less fuel – saving your energy bills and preventing pressure drops that disrupt your production.

Simplify YOUR Maintenance

Swap cartridges in 5 minutes with your bare hands. No tools needed. Track replacement via your phone with IoT alerts (optional).

Match YOUR Industry Demands

For YOUR Dusty Mine/Cement Plant: Polyester fiber cartridges resist acid/alkali corrosion. Washable for your harsh environment.
For YOUR Pharma/Food Line: Oil-free certification keeps your air 100% contaminant-free.

Certified for YOUR Safety

ASME-compliant housing withstands your 10 Bar pressure spikes. IP55 rating protects against your site’s humidity and dust.

TECHNICAL PEACE OF MIND:

Fits your compressor’s flow rate (0.5–100 m³/min)
Serves your operation 24/7 (-20℃ to 150℃)
Replaces when ΔP > 0.15MPa – your indicator light warns you.

Features

• The folding number is uniform, there is no obvious deformation. the folding height is relatively high, and the dust holding capacity is large.
• The filter paper material is smooth and has no obvious odor.
• The plastic cover air filter in the high-quality air filter has moderate hardness and softness, and has a good fit during installation and is not easy to deform and dust is prevented from entering from the gap.
• The iron cover air filter in the high-quality air filter has high processing precision and is installed in place.

Pure wood pulp fiber production:
Economy, long service life, low penetration rate
Suitable for a variety of processing technology and production:
1. EquipmentHeight Gram weight
2. With corrugated
3. Average aperture 30+ micron
4. Acrylic, phenolic or mixed type adhesion
5. High strength
6. Low glass fiber content

The quality of raw materials directly determines the quality of the filter products:
1. Poor filter material
2. Low air filtration precision, mass dust entry
3. lncrease of oil impurities
4. Oil separator is blocked, deformed and shorten life, causing system running oil serious.

The design of filter
The filtration media of Dinree use the wood pulp filter paper import from USA Hvcompany and Korea AHLSTROM company, filtration accuracy 10um-15um Filtrationefficiency 99.5%, service life up to 2000 hours.

ALERT! AIR FILLER DIRECTLY DETERMINES THE SERVICE LIFE OF THE OIL SEPARATOR

◆Waterproof performance: The air contains a lot of water vapor,and the water content in the air will be higher in the rainy day.If the waterproof performance of the air filter is not good, it will be easily damp, which will affect the air compressor's inhalation,and the air filter will fold and even block,causing unnecessary power consumption

◆Fitration accuracy: If the air filter is not accuratea targe Amount of Time dust impurities will is "lucked into the strew all compressor, resulting in a decrease in the quality of the lubricating oil; thus affecting the core components such as the main rotor and the bearing: ultimately, the efficiency of the main engine is reduced and the life is shortened.Increased lubricant impurities will cause oil blockagepressure difference will rise blockage to a certain extentwill cause oil deformation. the most direct consequence is that the system runs oil seriously.The main function of the oil filter is to maintain the quality of the lubricating oil.However. if the quality of the air filter is not good, the oil filter burden will increase greatly.After the oil filter isclogged, the most direct problem of the machine is high temperature

◆Air permeability: If the air permeability is not good, it will increase the differential pressure before and after the intake. The most direct performance is that the air filter or the connecting hose is sucked, and the air compressor runs to generate electricity waste.Filtration accuracy and air permeability are relatively contradictory, but from practical applicationsfiltration accuracy and efficiency should find an optimal balance the operating efficiency, maintenance cost and service life of the air compressor are optimal.

◆In summary, the selection of high-quality air filter will greatly reduce the overall operating cost, avoid the loss of maintenance cvclemachine damaae and other losses: from the perspective of eneray savinathe cost of using high-quality air filter increases in the face of saving electricity,it is insignificant.

specification parameter table

Product Model	Corresponding part number	Rated flow (m3/min)	外径d1 （mm）	内径d2 （mm）	高度h （mm）
66100080	C1140	1.3	100	67	80
66120135	C1250	2.6	120	67	135
66125288	C14200	3.9	125	80	288
66158345	C16400	6.5	158	100	345
66195370	C20500	8.9	195	115	370
66247375	C25860	16	247	150	375
66236500	C25710	22	236	145	500
66295560	C30810	28	295	208	560
