Dirty Air Chokes YOUR Profit.
Dust slipping past your intake valve grinds your rotors like sandpaper – stealing your energy efficiency and killing your compressor lifespan.

Send email to us

Product Detail

Product Tags

Product Image

OUR VALVE DEFENDS YOUR INVESTMENT:

Lock Contaminants Out of YOUR Engine

Dual-seal flap blocks 99.9% of your site’s dust/pollen, extending your oil life 40% and rotor lifespan 3 years.

Slash YOUR Energy Waste

Precision spring control gives your compressor exactly the air it needs – cutting your power bills by 15% at partial loads.

Silence YOUR Noisy Plant

Rubber-coated flap closes your intake in 0.2 seconds – stopping that deafening bang that stresses your crew.

Swap Without Shutting YOUR Line

Modular design replaces your old valve in 15 minutes. Fits your Ingersoll Rand/Sullair unit.

The intake valve has the function of unloading and supplying air, which can effectively eliminate the cavitation noise generated by the host;

The intake valve integrates relief valve, air supply valve, solenoid valve and proportional valve, which is easy and fast to install.

Product Features:

1. Suitable for industrial frequency oil-injected screw air compressors;

2. It is a normally open intake valve, with a control pressure signal input, the intake valve is closed;

3. Special structure design, no problem of high starting load of general normally open intake valve;

4. The intake valve of the whole system has a non-return function, and it will not inject fuel in the case of emergency shutdown;

5. The intake valve has the function of unloading and supplying air, which can effectively eliminate the cavitation noise generated by the host;

6. The intake valve integrates relief valve, air supply valve, solenoid valve and proportional valve, which is easy and fast to install.

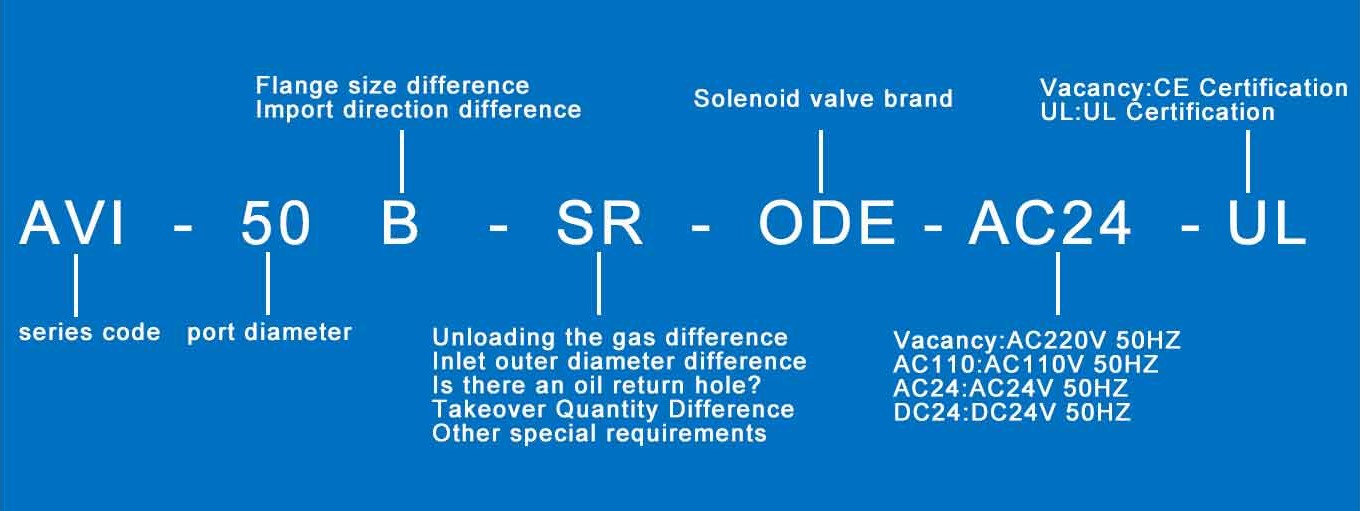

Model prefix	AIV-25	AIV-40	AIV-50	AIV-65	AIV-85	AIV-100	AIV-120
Diameter(mm)	25	40	50	65	88	100	120
Maximum working pressure (bar)	15
Working medium temperature (℃)	-20～120
Working ambient temperature (℃)	-20～60
non-return function	●	●	●	●	●	●	●
ON/OFF control	●	●	●	●	●	●	●
Flow stepless control	―	―	○	○	●	●	●
Unloading the supplemental gas function	○	○	●	●	●	●	○
Solenoid valve power supply	AC220V 50Hz（Please contact us for other power requirements）
Solenoid valve certification	CE（Please contact us for other certifications）
Air intake direction	vertical	vertical/horizontal	vertical/horizontal	vertical/horizontal	vertical/horizontal	vertical/horizontal	vertical
● Standard ○ Optional ― none

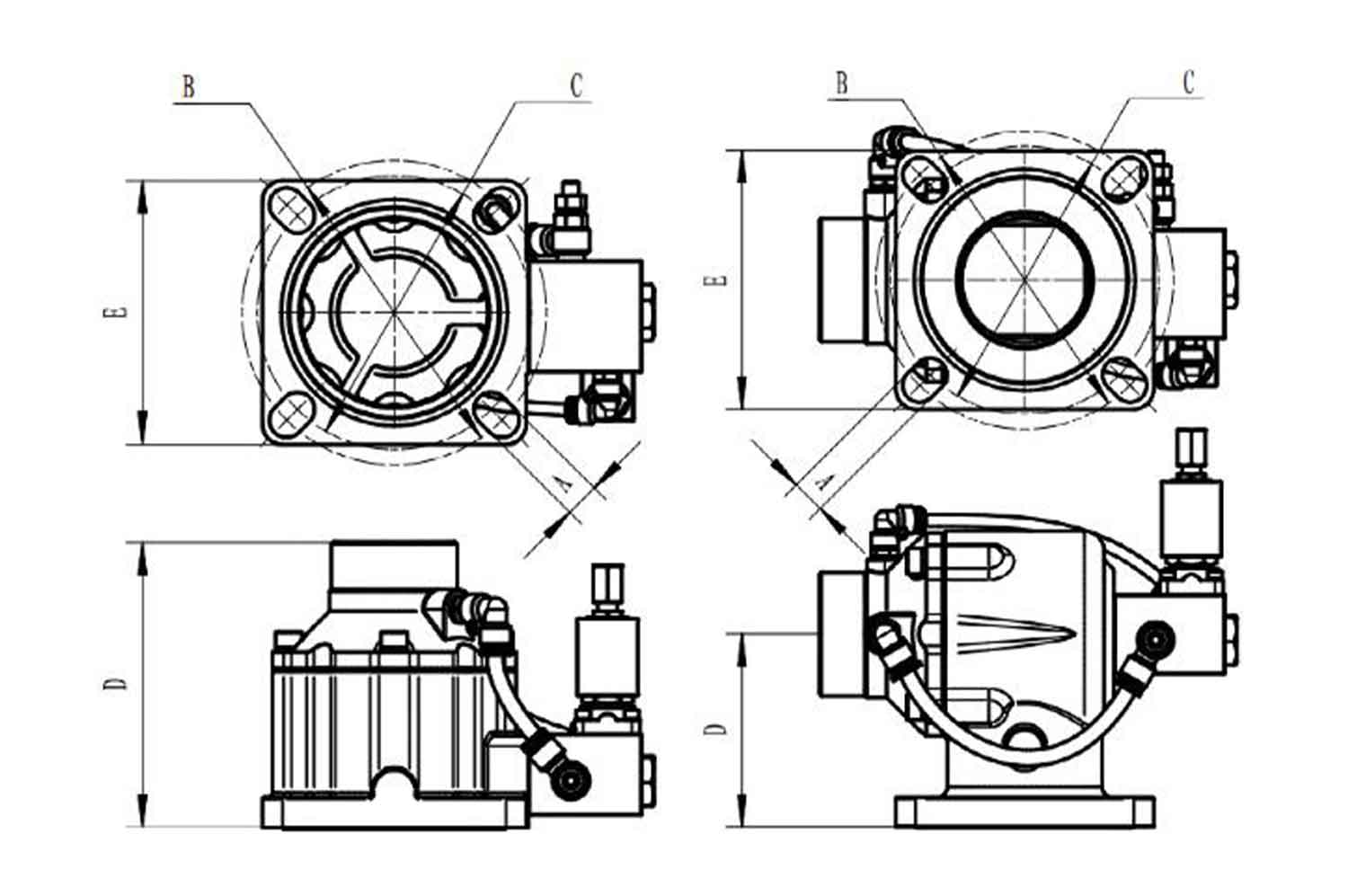

Model prefix	Air intake direction	A	B	C	D	E
AIV-25B	vertical	4-9	62X55	53X53	75	75X80
AIV-25J	vertical	4-6.5	82	78	84	80X80
AIV-25Y	vertical	4-9	116	104	84	98X98
AIV-25L	vertical	4-7.5	72	―	84	92
AIV-40B	vertical	4-9	116	104	105	98X98
AIV-40C	vertical	4-13	135	115	105	120X120
AIV-40D	vertical	4-17	150	130	105	136X136
AIV-40F	vertical	4-9	135	120	105	120X120
AIV-40G	vertical	4-11	135	109	105	120X120
AIV-40J	vertical	4-13	160	135	105	136X136
AIV-50B	vertical	4-17	150	135	140.5	130X130
AIV-50C	vertical	4-13	135	120	140.5	130X130
AIV-50R	vertical	4-9	125	115	140.5	130X130
AIV-65C	vertical	4-17	170	143	155.5	144X144
AIV-65R	vertical	4-13	120X120	―	155.5	144X144
AIV-65Z	vertical	4-13	135	―	155.5	140X140
AIV-85B	vertical	4-17	180	160	181.5	156X156
AIV-100C	vertical	8-17	225	210	200	255
AIV-120B	vertical	8-17	225	210	249	250
AIV-40A	horizontal	4-9	116	104	113	98X98
AIV-40E	horizontal	4-9	116	104	72	98X98
AIV-50A	horizontal	4-17	150	135	97	130X130
AIV-50E	horizontal	4-13	135	120	97	130X130
AIV-65A	horizontal	4-17	170	143	95	144X144
AIV-85A	horizontal	4-17	180	160	127	155X155
AIV-100A	horizontal	8-17	225	210	150	255
